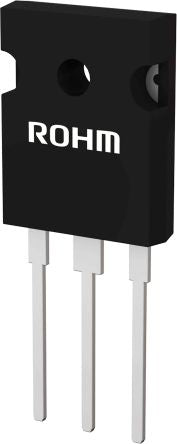

R6025JNZ4C13 N-Channel MOSFET, 25 A, 600 V, 3-Pin TO-247G ROHM [R6025JNZ4C13]; 185-1308
by ROHM
0₫
Mã kho: 1851308
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 25 A |
Maximum Drain Source Voltage | 600 V |
Package Type | TO-247G |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 180 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 7V |
Minimum Gate Threshold Voltage | 5V |
Maximum Power Dissipation | 306 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | ±30 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Width | 5.22mm |
Length | 16.24mm |
Maximum Operating Temperature | +150 °C |
Typical Gate Charge @ Vgs | 57 nC @ 15 V |
Height | 21.25mm |
