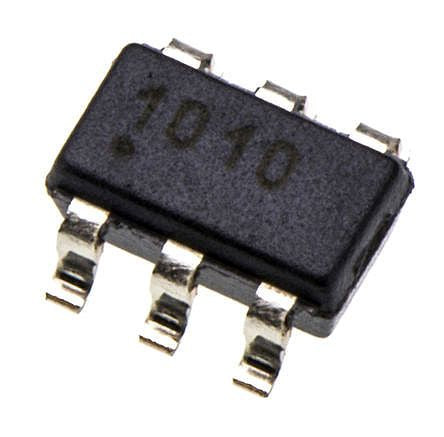

QS6J11TR Dual P-Channel MOSFET, 2 A, 12 V QS6J11, 6-Pin SOT-457 (SC-74) ROHM [QS6J11TR]; 133-3222
by ROHM
0₫
Mã kho: 1333222
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 0.0833333333333333 |
| Maximum Drain Source Voltage | 12 V |
| Package Type | SOT-457 (SC-74) |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 400 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1V |
| Minimum Gate Threshold Voltage | 0.3V |
| Maximum Power Dissipation | 1.25 W |
| Transistor Configuration | Dual Base |
| Maximum Gate Source Voltage | -10 V, +10 V |
| Number of Elements per Chip | 2 |
| Forward Diode Voltage | 1.2V |
| Width | 1.8mm |
| Length | 3mm |
| Typical Gate Charge @ Vgs | 6.5 nC @ 4.5 V |
| Height | 0.95mm |
| Maximum Operating Temperature | +150 °C |
| Series | QS6J11 |
