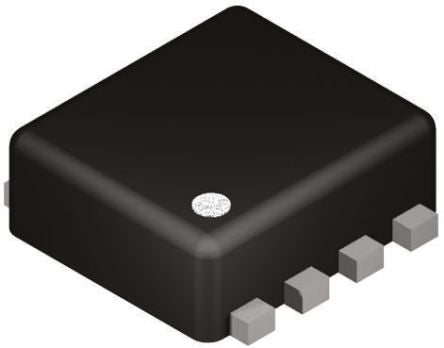

FK8V03020L N-Channel MOSFET, 14 A, 33 V FK, 8-Pin WMini8-F1 Panasonic [FK8V03020L]; 169-7905
by Panasonic
0₫
Mã kho: 1697905
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 14 A |
Maximum Drain Source Voltage | 33 V |
Package Type | WMini8-F1 |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 5.4 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 3V |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Width | 2.4mm |
Transistor Material | Si |
Height | 0.8mm |
Series | FK |
Length | 2.9mm |
