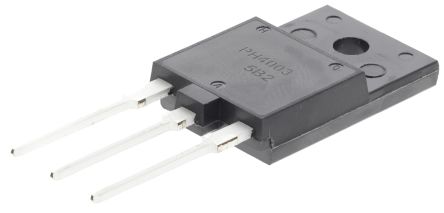

WPH4003-1E N-Channel MOSFET, 3 A, 1700 V, 3-Pin TO-3PF ON Semiconductor [WPH4003-1E]; 796-1393
0₫
Mã kho: 7961393
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 0.125 |
Maximum Drain Source Voltage | 1700 V |
Package Type | TO-3PF |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 10.5 Ω |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4V |
Maximum Power Dissipation | 55 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -30 V, +30 V |
Number of Elements per Chip | 1 |
Width | 5.5mm |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Transistor Material | Si |
Length | 15.5mm |
Height | 24.5mm |
Typical Gate Charge @ Vgs | 48 nC @ 10 V |
