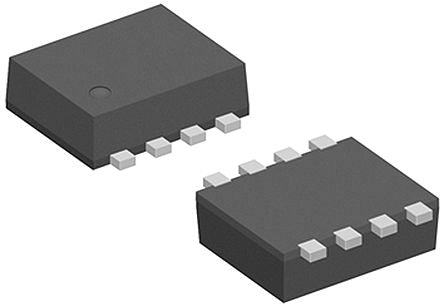

VEC2315-TL-W Dual P-Channel MOSFET, 2.5 A, 60 V, 8-Pin SOT-28FL, VEC8 ON Semiconductor [VEC2315-TL-W]; 163-2716
0₫
Mã kho: 1632716
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 2.5 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | SOT-28FL, VEC8 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 194 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.6V |
| Minimum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 1 W |
| Transistor Configuration | Isolated |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 2 |
| Forward Diode Voltage | 1.2V |
| Typical Gate Charge @ Vgs | 11 nC @ 10 V |
| Length | 2.9mm |
| Maximum Operating Temperature | +150 °C |
| Width | 2.3mm |
| Height | 0.73mm |
| Transistor Material | Si |
