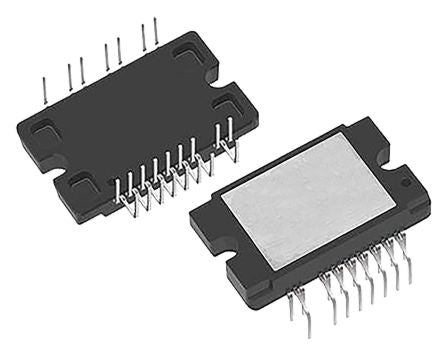

STK984-190-E 7 N-Channel MOSFET, 27 A, 40 V, 24-Pin DIP S3 ON Semiconductor [STK984-190-E]; 124-0948
0₫
Mã kho: 1240948
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 27 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | DIP S3 |
| Mounting Type | Through Hole |
| Pin Count | 24 |
| Maximum Drain Source Resistance | 10.9 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.5V |
| Minimum Gate Threshold Voltage | 1.5V |
| Maximum Power Dissipation | 36 W |
| Transistor Configuration | Common Source |
| Number of Elements per Chip | 7 |
| Minimum Operating Temperature | -40 °C |
| Width | 18.7mm |
| Typical Gate Charge @ Vgs | 33 nC @ 10 V |
| Height | 4.8mm |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 0.83V |
| Transistor Material | Si |
| Length | 30.1mm |
