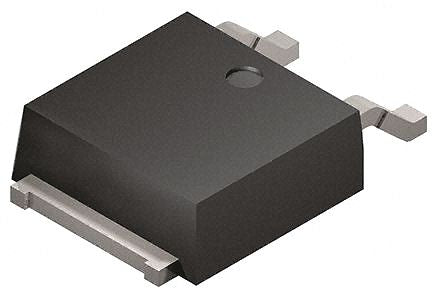

SFT1445-TL-H N-Channel MOSFET, 17 A, 100 V, 3-Pin TP-FA ON Semiconductor [SFT1445-TL-H]; 145-4213
0₫
Mã kho: 1454213
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 17 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | TP-FA |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 130 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.6V |
| Maximum Power Dissipation | 35 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
| Width | 5.5mm |
| Maximum Operating Temperature | +150 °C |
| Height | 2.3mm |
| Typical Gate Charge @ Vgs | 19 nC @ 10 V |
| Length | 6.5mm |
