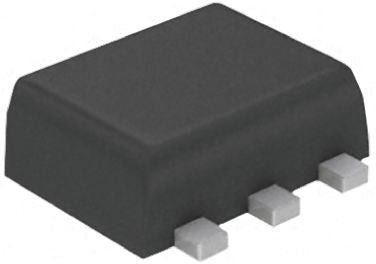

SCH2825-TL-E N-Channel MOSFET, 1.6 A, 30 V Depletion, 6-Pin SCH ON Semiconductor [SCH2825-TL-E]; 162-9636
0₫
Mã kho: 1629636
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 1.6 A |
Maximum Drain Source Voltage | 30 V |
Package Type | SCH |
Mounting Type | Surface Mount |
Pin Count | 6 |
Maximum Drain Source Resistance | 180 mΩ |
Channel Mode | Depletion |
Maximum Gate Threshold Voltage | 2.6V |
Maximum Power Dissipation | 600 mW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Maximum Operating Temperature | +150 °C |
Typical Gate Charge @ Vgs | 2 nC @ 10 V |
Transistor Material | Si |
Height | 0.56mm |
Width | 1.5mm |
Length | 1.6mm |
