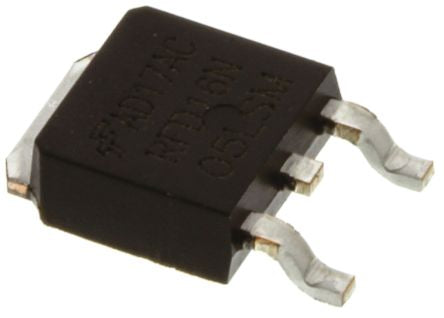

![ON Semiconductor RFD16N05LSM9A 1662656](http://nguyenxuong.com/cdn/shop/products/F7613574-01_444x318.jpg?v=1594254353)
RFD16N05LSM9A N-Channel MOSFET, 16 A, 50 V MegaFET, 3-Pin DPAK ON Semiconductor [RFD16N05LSM9A]; 166-2656
0₫
Mã kho: 1662656
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 16 A |
Maximum Drain Source Voltage | 50 V |
Package Type | DPAK (TO-252) |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 47 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 60 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -10 V, +10 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Width | 6.22mm |
Height | 2.39mm |
Typical Gate Charge @ Vgs | 80 nC @ 10 V |
Series | MegaFET |
Maximum Operating Temperature | +150 °C |
Length | 6.73mm |
Transistor Material | Si |
