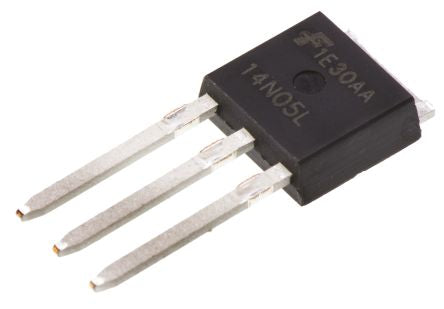

![ON Semiconductor RFD14N05L 3257580](http://nguyenxuong.com/cdn/shop/products/F3257580-01_444x309.jpg?v=1594019473)
RFD14N05L N-Channel MOSFET, 14 A, 50 V, 3-Pin IPAK ON Semiconductor [RFD14N05L]; 325-7580
0₫
Mã kho: 3257580
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 14 A |
Maximum Drain Source Voltage | 50 V |
Package Type | IPAK (TO-251) |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 100 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 48 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -10 V, +10 V |
Number of Elements per Chip | 1 |
Transistor Material | Si |
Typical Gate Charge @ Vgs | 25 nC @ 5 V, 40 nC @ 10 V |
Minimum Operating Temperature | -55 °C |
Width | 2.5mm |
Height | 6.3mm |
Maximum Operating Temperature | +175 °C |
Length | 6.8mm |
