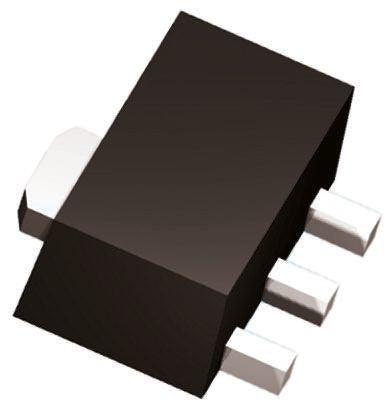

PCP1402-TD-H N-Channel MOSFET, 1.2 A, 250 V, 3-Pin SOT-89 ON Semiconductor [PCP1402-TD-H]; 163-0309
0₫
Mã kho: 1630309
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 1.2 A |
| Maximum Drain Source Voltage | 250 V |
| Package Type | SOT-89 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 2.4 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.5V |
| Maximum Power Dissipation | 3.5 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 4.2 nC @ 10 V |
| Height | 1.5mm |
| Maximum Operating Temperature | +150 °C |
| Length | 4.5mm |
| Transistor Material | Si |
| Width | 2.5mm |
