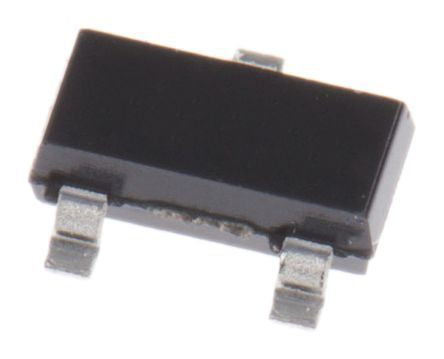

NVR5198NLT1G N-Channel MOSFET, 2.2 A, 60 V, 3-Pin SOT-23 ON Semiconductor [NVR5198NLT1G]; 184-1073
0₫
Mã kho: 1841073
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 2.2 A |
Maximum Drain Source Voltage | 60 V |
Package Type | SOT-23 |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 205 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.5V |
Minimum Gate Threshold Voltage | 1.5V |
Maximum Power Dissipation | 1.5 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | ±20 V |
Number of Elements per Chip | 1 |
Length | 3.04mm |
Forward Diode Voltage | 1.2V |
Automotive Standard | AEC-Q101 |
Typical Gate Charge @ Vgs | 5.1 nC @ 10 V |
Height | 1.01mm |
Maximum Operating Temperature | +150 °C |
Width | 1.4mm |
Minimum Operating Temperature | -55 °C |
