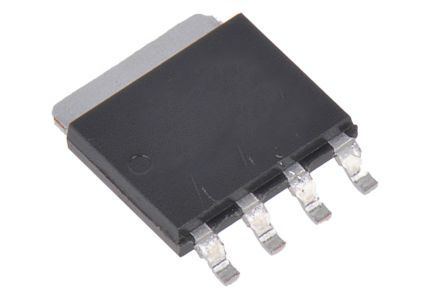

NVMYS025N06CLTWG [NVMYS025N06CLTWG]; 195-2552
0₫
Mã kho: 1952552
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 21 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | LFPAK |
| Mounting Type | Surface Mount |
| Pin Count | 4 |
| Maximum Drain Source Resistance | 43 mO |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Minimum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 24 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 4.25mm |
| Forward Diode Voltage | 1.2V |
| Maximum Operating Temperature | +175 °C |
| Automotive Standard | AEC-Q101 |
| Height | 1.15mm |
| Typical Gate Charge @ Vgs | 5.8 @ 10 V nC |
| Length | 5mm |
