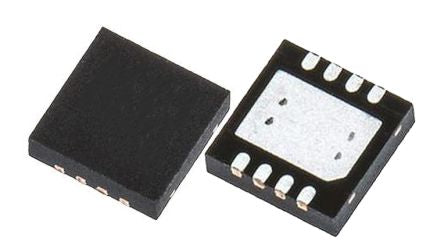

NVMTS1D2N08H MOSFETs [NVMTS1D2N08H]; 195-2677
0₫
Mã kho: 1952677
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 337 A |
| Maximum Drain Source Voltage | 80 V |
| Package Type | DFN |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 1.1 mO |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 300 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Width | 8mm |
| Forward Diode Voltage | 1.2V |
| Maximum Operating Temperature | +175 °C |
| Minimum Operating Temperature | -55 °C |
| Length | 8.1mm |
| Automotive Standard | AEC-Q101 |
| Height | 1.15mm |
| Typical Gate Charge @ Vgs | 147 @ 10 V nC |
