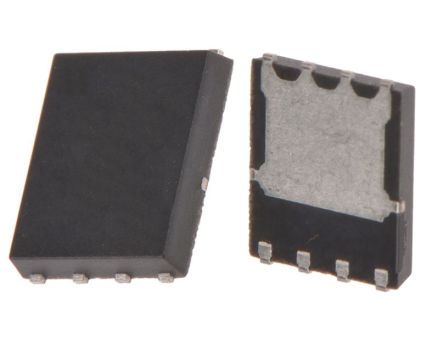

NVMFSC1D6N06CL MOSFETs [NVMFSC1D6N06CL]; 195-2675
0₫
Mã kho: 1952675
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 224 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | PQFN |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 2.3 mO |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Minimum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 166 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Height | 0.95mm |
| Width | 5mm |
| Typical Gate Charge @ Vgs | 91 @ 10 V nC |
| Length | 5.9mm |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 1.2V |
| Minimum Operating Temperature | -55 °C |
