![ON Semiconductor NVMFSC0D9N04CL 1952672](http://nguyenxuong.com/cdn/shop/products/P1952672-01_444x242.jpg?v=1594167934)

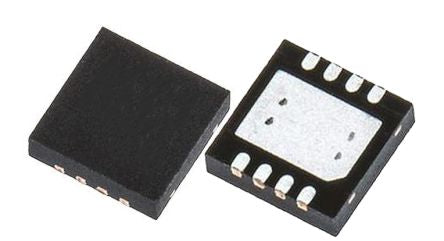

NVMFSC0D9N04CL MOSFETs [NVMFSC0D9N04CL]; 195-2672
0₫
Mã kho: 1952672
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 316 A |
Maximum Drain Source Voltage | 40 V |
Package Type | DFN |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 1.3 mO |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 3.5V |
Minimum Gate Threshold Voltage | 2.5V |
Maximum Power Dissipation | 166 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | ±20 V |
Number of Elements per Chip | 1 |
Width | 5mm |
Maximum Operating Temperature | +175 °C |
Minimum Operating Temperature | -55 °C |
Forward Diode Voltage | 1.2V |
Height | 0.95mm |
Automotive Standard | AEC-Q101 |
Typical Gate Charge @ Vgs | 86 @ 10 V nC |
Length | 5.9mm |
