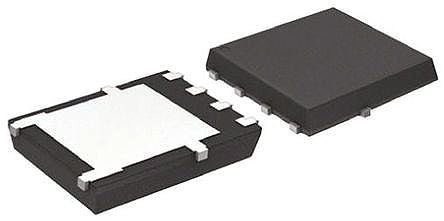

NVMFS5C604NLWFAFT1G N-Channel MOSFET, 287 A, 60 V NVMFS5C604NL, 4+Tab-Pin DFN ON Semiconductor [NVMFS5C604NLWFAFT1G]; 141-2085
0₫
Mã kho: 1412085
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 287 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | DFN |
| Mounting Type | Surface Mount |
| Pin Count | 4 + Tab |
| Maximum Drain Source Resistance | 1.7 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Minimum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 200 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +175 °C |
| Length | 5.1mm |
| Forward Diode Voltage | 1.2V |
| Width | 6.1mm |
| Typical Gate Charge @ Vgs | 120 nC @ 10 V |
| Automotive Standard | AEC-Q101 |
| Height | 1.05mm |
| Series | NVMFS5C604NL |
