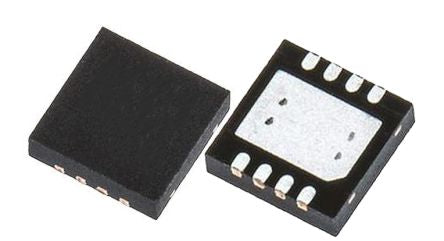

![ON Semiconductor NVMFD6H852NLWFT1G 1952556](http://nguyenxuong.com/cdn/shop/products/P1952556-01_444x242.jpg?v=1594080003)
NVMFD6H852NLWFT1G [NVMFD6H852NLWFT1G]; 195-2556
0₫
Mã kho: 1952556
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 25 A |
Maximum Drain Source Voltage | 80 V |
Package Type | DFN |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 31.5 mO |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2V |
Minimum Gate Threshold Voltage | 1.2V |
Maximum Power Dissipation | 3.2 W |
Transistor Configuration | Dual |
Maximum Gate Source Voltage | ±20 V |
Number of Elements per Chip | 2 |
Height | 1.05mm |
Width | 5.1mm |
Minimum Operating Temperature | -55 °C |
Typical Gate Charge @ Vgs | 10 @ 10 V nC |
Forward Diode Voltage | 1.2V |
Automotive Standard | AEC-Q101 |
Maximum Operating Temperature | +175 °C |
Length | 6.1mm |
