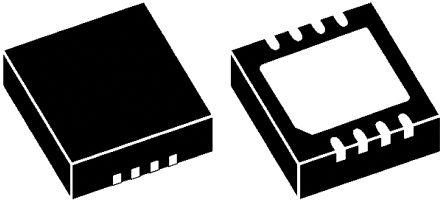

![ON Semiconductor NVMFD5C680NLT1G 1723320](http://nguyenxuong.com/cdn/shop/products/R1723320-01_444x202.jpg?v=1594055835)
NVMFD5C680NLT1G Dual N-Channel MOSFET, 26 A, 60 V NVMFD5C680NL, 8-Pin DFN ON Semiconductor [NVMFD5C680NLT1G]; 172-3320
0₫
Mã kho: 1723320
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 26 A |
Maximum Drain Source Voltage | 60 V |
Package Type | DFN |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 41 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.2V |
Minimum Gate Threshold Voltage | 1.2V |
Maximum Power Dissipation | 19 W |
Maximum Gate Source Voltage | ±20 V |
Number of Elements per Chip | 2 |
Width | 5.1mm |
Minimum Operating Temperature | -55 °C |
Automotive Standard | AEC-Q101 |
Typical Gate Charge @ Vgs | 5 nC @ 10 V |
Height | 1.05mm |
Series | NVMFD5C680NL |
Maximum Operating Temperature | +175 °C |
Length | 6.1mm |
Forward Diode Voltage | 1.2V |
