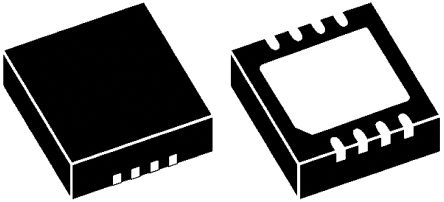

NVMFD5C470NLT1G Dual N-Channel MOSFET, 36 A, 40 V NVMFD5C470NL, 8-Pin DFN ON Semiconductor [NVMFD5C470NLT1G]; 172-3371
0₫
Mã kho: 1723371
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 36 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | DFN |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 17.8 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.2V |
| Minimum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 24 W |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Width | 5.1mm |
| Forward Diode Voltage | 1.2V |
| Length | 6.1mm |
| Maximum Operating Temperature | +175 °C |
| Series | NVMFD5C470NL |
| Height | 1.05mm |
| Typical Gate Charge @ Vgs | 9 nC @ 10 V |
| Automotive Standard | AEC-Q101 |
