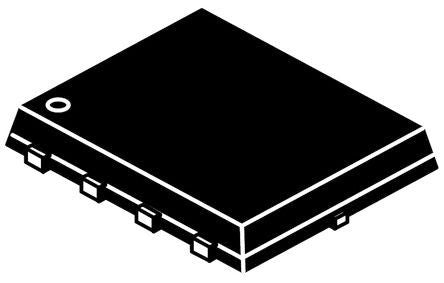

NVMFD5877NLT1G Dual N-Channel MOSFET, 17 A, 60 V, 8-Pin DFN ON Semiconductor [NVMFD5877NLT1G]; 163-2317
0₫
Mã kho: 1632317
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 17 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | DFN |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 60 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 23 W |
| Transistor Configuration | Isolated |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 2 |
| Typical Gate Charge @ Vgs | 11 nC @ 10 V |
| Width | 5.1mm |
| Transistor Material | Si |
| Maximum Operating Temperature | +175 °C |
| Minimum Operating Temperature | -55 °C |
| Height | 1.05mm |
| Length | 6.1mm |
