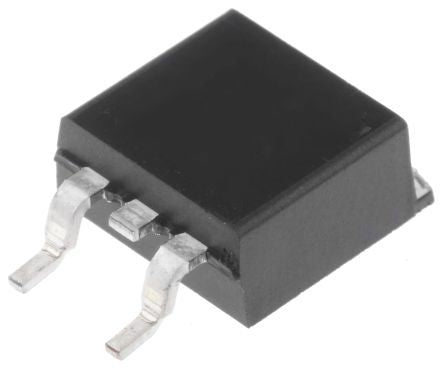

NVB072N65S3 N-Channel MOSFET, 44 A, 650 V, 3-Pin D2PAK ON Semiconductor [NVB072N65S3]; 186-1461
0₫
Mã kho: 1861461
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 44 A |
| Maximum Drain Source Voltage | 650 V |
| Package Type | D2PAK |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 107 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4.5V |
| Minimum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 312 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±30 V |
| Number of Elements per Chip | 1 |
| Width | 9.65mm |
| Minimum Operating Temperature | -55 °C |
| Forward Diode Voltage | 1.2V |
| Automotive Standard | AEC-Q101 |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 82 nC @ 10 V |
| Height | 4.58mm |
| Length | 10.67mm |
