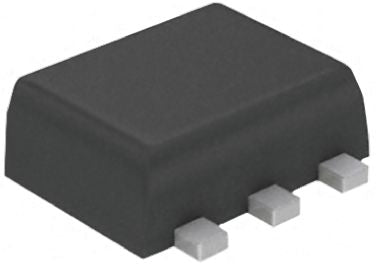

NTZD5110NT1G Dual N-Channel MOSFET, 310 mA, 60 V, 6-Pin SOT-563 ON Semiconductor [NTZD5110NT1G]; 163-1146
0₫
Mã kho: 1631146
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 310 mA |
| Maximum Drain Source Voltage | 60 V |
| Package Type | SOT-563 |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 2.5 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 280 mW |
| Transistor Configuration | Isolated |
| Maximum Gate Source Voltage | -6 V, +6 V |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Height | 0.6mm |
| Width | 1.3mm |
| Typical Gate Charge @ Vgs | 0.7 nC @ 4.5 V |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Length | 1.7mm |
