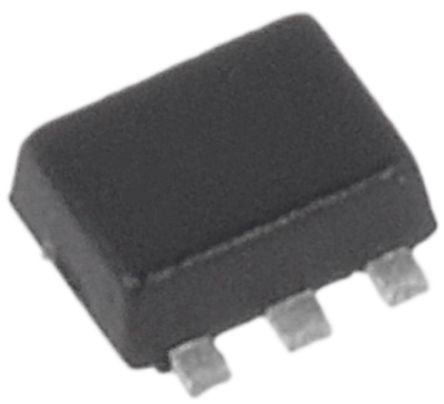

NTZD3154NT1G Dual N-Channel MOSFET, 540 mA, 20 V, 6-Pin SOT-563 ON Semiconductor [NTZD3154NT1G]; 184-1406
0₫
Mã kho: 1841406
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 540 mA |
Maximum Drain Source Voltage | 20 V |
Package Type | SOT-563 |
Mounting Type | Surface Mount |
Pin Count | 6 |
Maximum Drain Source Resistance | 900 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 1V |
Minimum Gate Threshold Voltage | 0.45V |
Maximum Power Dissipation | 250 mW |
Maximum Gate Source Voltage | ±7 V |
Number of Elements per Chip | 2 |
Length | 1.7mm |
Minimum Operating Temperature | -55 °C |
Height | 0.6mm |
Maximum Operating Temperature | +150 °C |
Forward Diode Voltage | 1.2V |
Width | 1.3mm |
Typical Gate Charge @ Vgs | 1.5 nC @ 4.5 V |
