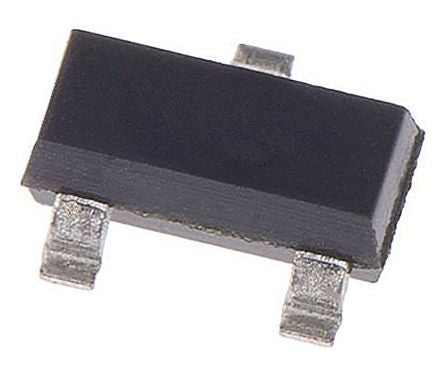

![ON Semiconductor NTS4409NT1G 1631143](http://nguyenxuong.com/cdn/shop/products/R7804770-01_6362620b-63c9-41e5-97f0-527c00f14b91_444x365.jpg?v=1594287609)
NTS4409NT1G N-Channel MOSFET, 700 mA, 25 V, 3-Pin SOT-23 ON Semiconductor [NTS4409NT1G]; 163-1143
0₫
Mã kho: 1631143
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 700 mA |
Maximum Drain Source Voltage | 25 V |
Package Type | SOT-23 |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 400 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 1.5V |
Maximum Power Dissipation | 330 mW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -8 V, +8 V |
Number of Elements per Chip | 1 |
Typical Gate Charge @ Vgs | 1.2 nC @ 4.5 V |
Minimum Operating Temperature | -55 °C |
Height | 0.9mm |
Maximum Operating Temperature | +150 °C |
Width | 1.35mm |
Length | 2.2mm |
Transistor Material | Si |
