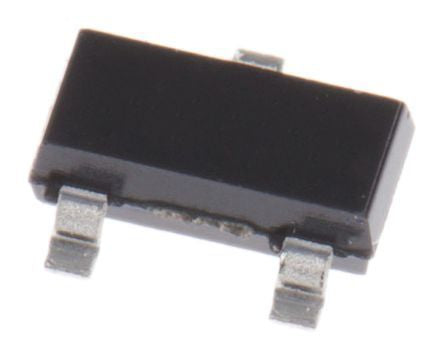

NTR4170NT1G N-Channel MOSFET, 2.4 A, 30 V, 3-Pin SOT-23 ON Semiconductor [NTR4170NT1G]; 184-1067
0₫
Mã kho: 1841067
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 2.4 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 110 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.4V |
| Minimum Gate Threshold Voltage | 0.6V |
| Maximum Power Dissipation | 480 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±12 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 4.76 nC @ 4.5 V |
| Width | 1.4mm |
| Height | 1.01mm |
| Maximum Operating Temperature | +150 °C |
| Length | 3.04mm |
| Forward Diode Voltage | 1V |
| Minimum Operating Temperature | -55 °C |
