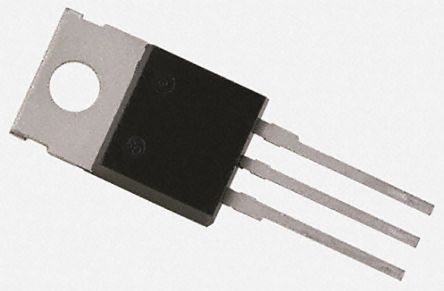

NTP6410ANG N-Channel MOSFET, 76 A, 100 V, 3-Pin TO-220 ON Semiconductor [NTP6410ANG]; 145-5219
0₫
Mã kho: 1455219
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 76 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 13 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Maximum Power Dissipation | 188 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 15.75mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 120 nC @ 10 V |
| Height | 4.82mm |
| Maximum Operating Temperature | +175 °C |
| Transistor Material | Si |
| Length | 10.28mm |
