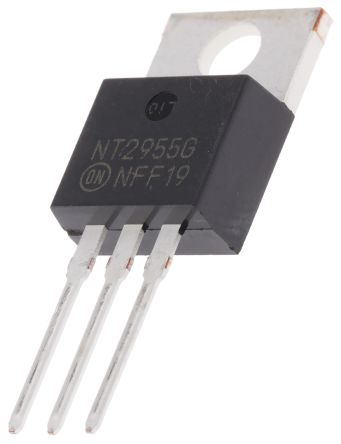

NTP2955G P-Channel MOSFET, 12 A, 60 V, 3-Pin TO-220 ON Semiconductor [NTP2955G]; 780-4736
0₫
Mã kho: 7804736
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 0 |
| Maximum Drain Source Voltage | 60 V |
| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 196 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Maximum Power Dissipation | 62.5 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Height | 9.28mm |
| Width | 4.82mm |
| Transistor Material | Si |
| Maximum Operating Temperature | +175 °C |
| Length | 10.28mm |
| Typical Gate Charge @ Vgs | 14 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
