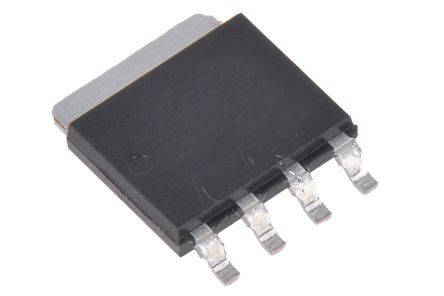

![ON Semiconductor NTMYS5D3N04CTWG 1952521](http://nguyenxuong.com/cdn/shop/products/P1952521-01_444x296.jpg?v=1594321989)
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 71 A |
Maximum Drain Source Voltage | 40 V |
Package Type | LFPAK |
Mounting Type | Surface Mount |
Pin Count | 4 |
Maximum Drain Source Resistance | 5.3 mO |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 3.5V |
Minimum Gate Threshold Voltage | 2.5V |
Maximum Power Dissipation | 50 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | ±20 V |
Number of Elements per Chip | 1 |
Typical Gate Charge @ Vgs | 16 @ 10 V nC |
Width | 4.25mm |
Maximum Operating Temperature | +175 °C |
Forward Diode Voltage | 1.2V |
Minimum Operating Temperature | -55 °C |
Height | 1.15mm |
Length | 5mm |
