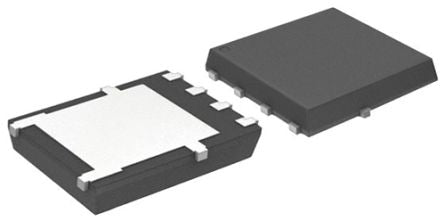

NTMFS6H801NT1G N-Channel MOSFET, 157 A, 80 V, 5-Pin DFN ON Semiconductor [NTMFS6H801NT1G]; 172-8986
0₫
Mã kho: 1728986
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 157 A |
| Maximum Drain Source Voltage | 80 V |
| Package Type | DFN |
| Mounting Type | Surface Mount |
| Pin Count | 5 |
| Maximum Drain Source Resistance | 4.4 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 166 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Forward Diode Voltage | 1.2V |
| Width | 5.1mm |
| Length | 6.1mm |
| Minimum Operating Temperature | -55 °C |
| Height | 1.1mm |
| Typical Gate Charge @ Vgs | 64 nC @ 10 V |
| Maximum Operating Temperature | +175 °C |
