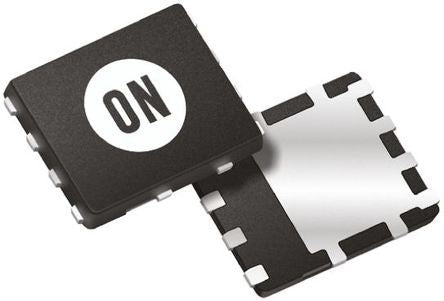

NTMFS5H600NLT1G N-Channel MOSFET, 250 A, 60 V NTMFS5H600NL, 4+Tab-Pin DFN ON Semiconductor [NTMFS5H600NLT1G]; 170-3402
0₫
Mã kho: 1703402
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 250 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | DFN |
| Mounting Type | Surface Mount |
| Pin Count | 4 + Tab |
| Maximum Drain Source Resistance | 1.7 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Minimum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 160 W |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Length | 6.1mm |
| Forward Diode Voltage | 1.2V |
| Width | 5.1mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Height | 1.05mm |
| Series | NTMFS5H600NL |
| Typical Gate Charge @ Vgs | 89 nC @ 10 V |
