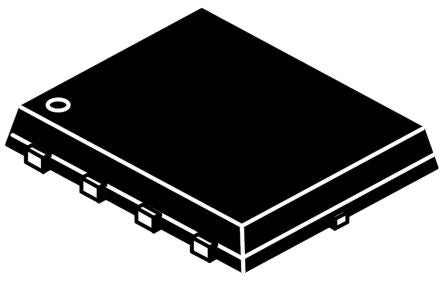

NTMFS4C05NT1G N-Channel MOSFET, 78 A, 30 V, 8-Pin SO-8FL ON Semiconductor [NTMFS4C05NT1G]; 145-3472
0₫
Mã kho: 1453472
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 78 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SO-8FL |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 5 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.2V |
| Maximum Power Dissipation | 33 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 5.1mm |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 30 nC @ 10 V |
| Height | 1.05mm |
| Maximum Operating Temperature | +150 °C |
| Length | 6.1mm |
| Forward Diode Voltage | 1.1V |
