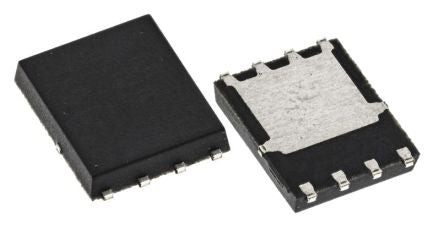

NTMFS08N003C N-Channel MOSFET, 147 A, 80 V, 8-Pin Power 56 ON Semiconductor [NTMFS08N003C]; 178-4505
0₫
Mã kho: 1784505
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 147 A |
| Maximum Drain Source Voltage | 80 V |
| Package Type | Power 56 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 3.1 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 125 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Length | 5mm |
| Forward Diode Voltage | 1.3V |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 52 nC @ 10 V |
| Height | 1.05mm |
| Width | 6mm |
