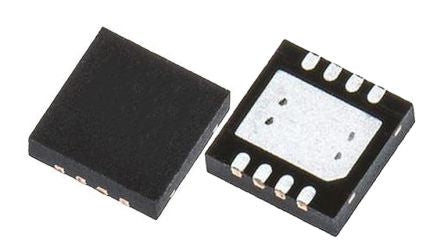

NTMFD5C680NLT1G Dual N-Channel MOSFET, 26 A, 60 V, 8-Pin DFN ON Semiconductor [NTMFD5C680NLT1G]; 178-4315
0₫
Mã kho: 1784315
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 26 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | DFN |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 28 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.2V |
| Minimum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 19 W |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 2 |
| Maximum Operating Temperature | +175 °C |
| Forward Diode Voltage | 1.2V |
| Height | 1.05mm |
| Typical Gate Charge @ Vgs | 2 nC @ 4.5 V |
| Length | 5.1mm |
| Minimum Operating Temperature | -55 °C |
| Width | 6.1mm |
