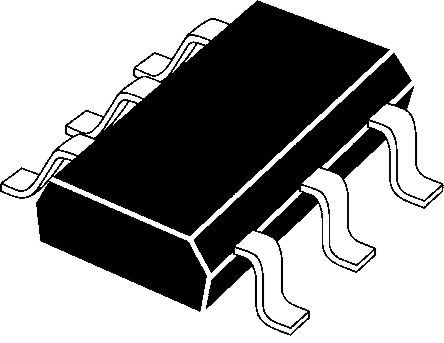

NTJS3157NT1G N-Channel MOSFET, 4 A, 20 V, 6-Pin SOT-363 ON Semiconductor [NTJS3157NT1G]; 145-3347
0₫
Mã kho: 1453347
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.166666666666667 |
| Maximum Drain Source Voltage | 20 V |
| Package Type | SOT-363 (SC-88) |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 85 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 1 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -8 V, +8 V |
| Number of Elements per Chip | 1 |
| Width | 1.35mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Height | 1mm |
| Typical Gate Charge @ Vgs | 6.9 nC @ 4.5 V |
| Transistor Material | Si |
| Length | 2.2mm |
