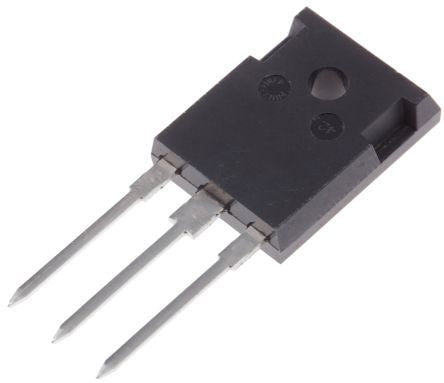

![ON Semiconductor NTHLD040N65S3HF 1952562](http://nguyenxuong.com/cdn/shop/products/P1952562-01_444x383.jpg?v=1594377618)
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 65 A |
Maximum Drain Source Voltage | 650 V |
Package Type | TO-247AD |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 40 mO |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 5V |
Minimum Gate Threshold Voltage | 3V |
Maximum Power Dissipation | 446 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | ±30 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Width | 5.3mm |
Height | 21.34mm |
Typical Gate Charge @ Vgs | 159 @ 10 V nC |
Forward Diode Voltage | 1.3V |
Length | 16.25mm |
Maximum Operating Temperature | +150 °C |
