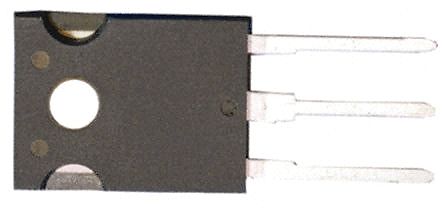

NTH027N65S3F-F155 N-Channel MOSFET, 75 A, 650 V NTH027N65S3F, 3-Pin TO-247 ON Semiconductor [NTH027N65S3F-F155]; 172-3437
0₫
Mã kho: 1723437
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 75 A |
| Maximum Drain Source Voltage | 650 V |
| Package Type | TO-247 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 27.4 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 5V |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 595 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±30 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 4.82mm |
| Height | 20.82mm |
| Series | NTH027N65S3F |
| Maximum Operating Temperature | +150 °C |
| Length | 15.87mm |
| Forward Diode Voltage | 1.3V |
| Typical Gate Charge @ Vgs | 259 nC @ 10 V |
