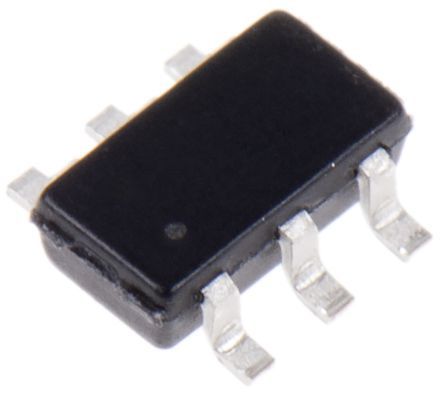

ON Semiconductor, NTGS3443T1G [NTGS3443T1G]; 186-7201
0₫
Mã kho: 1867201
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 2.2 A |
| Maximum Drain Source Voltage | 20 V |
| Package Type | TSOP |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 100 mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation | 2 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | +12 V |
| Number of Elements per Chip | 1 |
| Height | 1mm |
| Width | 3mm |
| Automotive Standard | AEC-Q101 |
| Typical Gate Charge @ Vgs | 7.5 nC @ 4.5 V dc |
| Minimum Operating Temperature | -55 °C |
| Length | 3.1mm |
| Maximum Operating Temperature | +150 °C |
