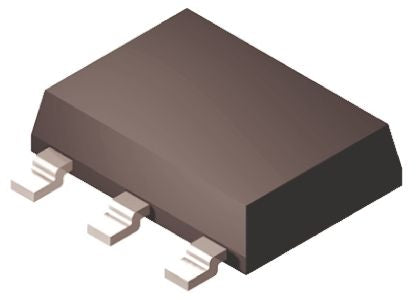

NTF5P03T3G P-Channel MOSFET, 2.9 A, 30 V, 3+Tab-Pin SOT-223 ON Semiconductor [NTF5P03T3G]; 802-1478
0₫
Mã kho: 8021478
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 2.9 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SOT-223 |
| Mounting Type | Surface Mount |
| Pin Count | 3 + Tab |
| Maximum Drain Source Resistance | 150 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 3.13 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Length | 6.7mm |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 15 nC @ 10 V |
| Height | 1.65mm |
| Width | 3.7mm |
| Transistor Material | Si |
