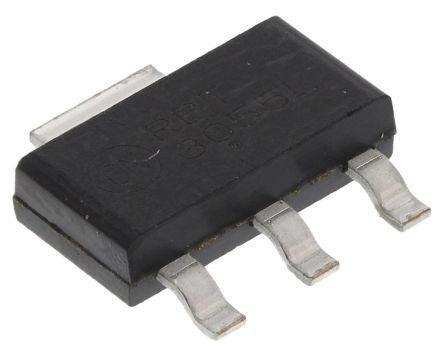

NTF3055L108T1G N-Channel MOSFET, 3 A, 60 V, 3+Tab-Pin SOT-223 ON Semiconductor [NTF3055L108T1G]; 100-8062
0₫
Mã kho: 1008062
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.125 |
| Maximum Drain Source Voltage | 60 V |
| Package Type | SOT-223 |
| Mounting Type | Surface Mount |
| Pin Count | 3 + Tab |
| Maximum Drain Source Resistance | 120 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 2.1 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -15 V, +15 V |
| Number of Elements per Chip | 1 |
| Width | 3.5mm |
| Typical Gate Charge @ Vgs | 7.6 nC @ 5 V |
| Length | 6.5mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Height | 1.57mm |
| Maximum Operating Temperature | +175 °C |
