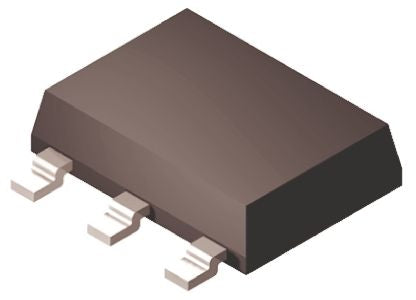

![ON Semiconductor NTF3055-100T1G 1632300](http://nguyenxuong.com/cdn/shop/products/SOT223-04_593b00f6-0f5d-456f-84d5-867df7ae2d2b_416x300.jpg?v=1594282189)
NTF3055-100T1G N-Channel MOSFET, 3 A, 60 V, 3+Tab-Pin SOT-223 ON Semiconductor [NTF3055-100T1G]; 163-2300
0₫
Mã kho: 1632300
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 0.125 |
Maximum Drain Source Voltage | 60 V |
Package Type | SOT-223 |
Mounting Type | Surface Mount |
Pin Count | 3 + Tab |
Maximum Drain Source Resistance | 110 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4V |
Maximum Power Dissipation | 2.1 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Width | 3.7mm |
Height | 1.65mm |
Typical Gate Charge @ Vgs | 22 nC @ 10 V dc |
Maximum Operating Temperature | +175 °C |
Length | 6.7mm |
Transistor Material | Si |
Minimum Operating Temperature | -55 °C |
