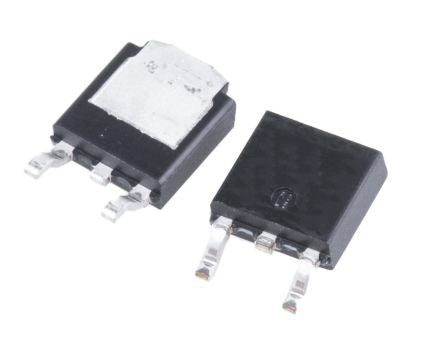

NTD5C648NLT4G N-Channel MOSFET, 91 A, 60 V, 3-Pin DPAK ON Semiconductor [NTD5C648NLT4G]; 178-4491
0₫
Mã kho: 1784491
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 91 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | DPAK |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 4.1 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.1V |
| Minimum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 76 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 6.22mm |
| Forward Diode Voltage | 1.2V |
| Length | 6.73mm |
| Maximum Operating Temperature | +175 °C |
| Height | 2.25mm |
| Typical Gate Charge @ Vgs | 17 nC @ 4.5 |
