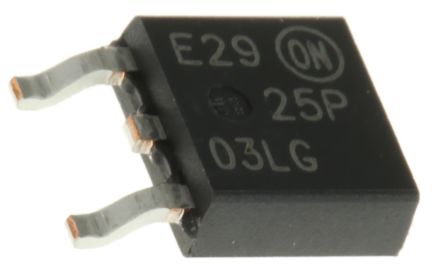

NTD25P03LT4G P-Channel MOSFET, 25 A, 30 V, 3-Pin DPAK ON Semiconductor [NTD25P03LT4G]; 103-5122
0₫
Mã kho: 1035122
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 25 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | DPAK (TO-252) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 90 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 75 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -15 V, +15 V |
| Number of Elements per Chip | 1 |
| Width | 6.22mm |
| Height | 2.38mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Length | 6.73mm |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 15 nC @ 5 V |
