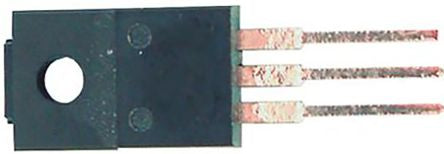

NDF04N60ZG N-Channel MOSFET, 4.8 A, 600 V, 3-Pin TO-220FP ON Semiconductor [NDF04N60ZG]; 780-0488
0₫
Mã kho: 7800488
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 4.8 A |
| Maximum Drain Source Voltage | 600 V |
| Package Type | TO-220FP |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 2 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4.5V |
| Maximum Power Dissipation | 30 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Width | 4.9mm |
| Length | 10.63mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 19 nC @ 10 V |
| Height | 16.12mm |
| Maximum Operating Temperature | +150 °C |
| Transistor Material | Si |
