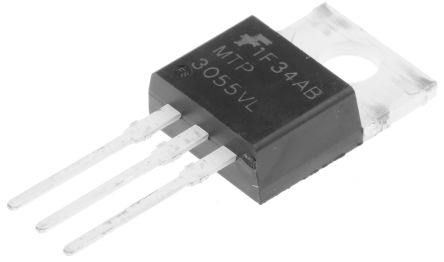

MTP3055VL N-Channel MOSFET, 12 A, 60 V, 3-Pin TO-220 ON Semiconductor [MTP3055VL]; 145-5555
0₫
Mã kho: 1455555
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0 |
| Maximum Drain Source Voltage | 60 V |
| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 180 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 48 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -15 V, +15 V |
| Number of Elements per Chip | 1 |
| Height | 16.51mm |
| Transistor Material | Si |
| Width | 4.83mm |
| Minimum Operating Temperature | -65 °C |
| Typical Gate Charge @ Vgs | 7.8 nC @ 5 V |
| Length | 10.67mm |
| Maximum Operating Temperature | +175 °C |
