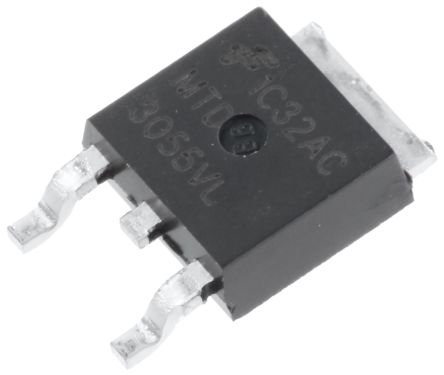

MTD3055VL N-Channel MOSFET, 12 A, 60 V, 3-Pin DPAK ON Semiconductor [MTD3055VL]; 761-4549
0₫
Mã kho: 7614549
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 0 |
Maximum Drain Source Voltage | 60 V |
Package Type | DPAK (TO-252) |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 180 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 48 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Typical Gate Charge @ Vgs | 10 nC @ 5 V |
Width | 6.22mm |
Height | 2.39mm |
Maximum Operating Temperature | +175 °C |
Length | 6.73mm |
Transistor Material | Si |
Minimum Operating Temperature | -55 °C |
