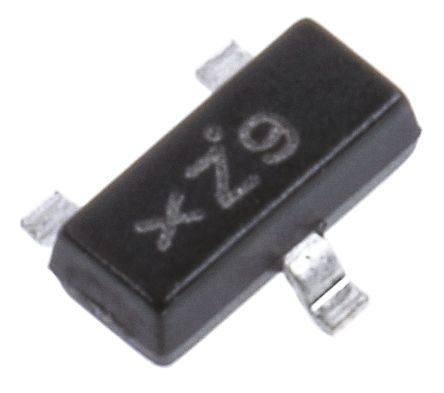

MMBF170LT1G N-Channel MOSFET, 500 mA, 60 V, 3-Pin SOT-23 ON Semiconductor [MMBF170LT1G]; 545-0321
0₫
Mã kho: 5450321
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 500 mA |
| Maximum Drain Source Voltage | 60 V |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 5 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 225 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Length | 2.9mm |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Height | 0.94mm |
| Width | 1.3mm |
