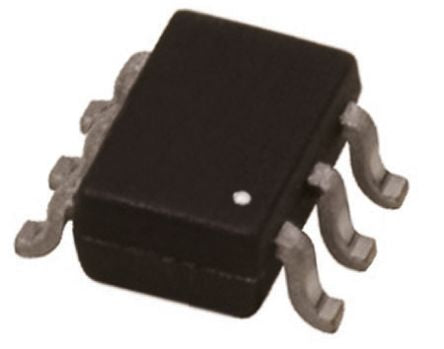

MCH6342-TL-H P-Channel MOSFET, 4.5 A, 30 V, 6-Pin MCPH ON Semiconductor [MCH6342-TL-H]; 163-2185
0₫
Mã kho: 1632185
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 4.5 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | MCPH |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 73 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.3V |
| Maximum Power Dissipation | 1.5 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -10 V, +10 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Transistor Material | Si |
| Length | 2mm |
| Typical Gate Charge @ Vgs | 8.6 nC @ 4.5 V |
| Width | 1.6mm |
| Height | 0.85mm |
