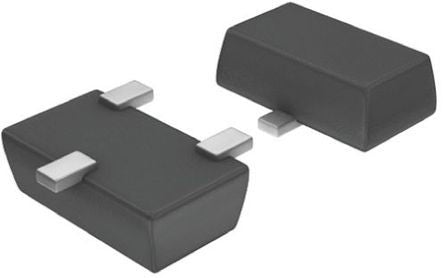

MCH3481-TL-W N-Channel MOSFET, 2 A, 20 V, 3-Pin MCPH3 ON Semiconductor [MCH3481-TL-W]; 163-0027
0₫
Mã kho: 1630027
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.0833333333333333 |
| Maximum Drain Source Voltage | 20 V |
| Package Type | MCPH3 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 540 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 0.9V |
| Minimum Gate Threshold Voltage | 0.3V |
| Maximum Power Dissipation | 800 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -9 V, +9 V |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
| Forward Diode Voltage | 1.2V |
| Width | 1.6mm |
| Typical Gate Charge @ Vgs | 2.9 nC @ 4 V |
| Height | 0.83mm |
| Maximum Operating Temperature | +150 °C |
| Length | 2mm |
