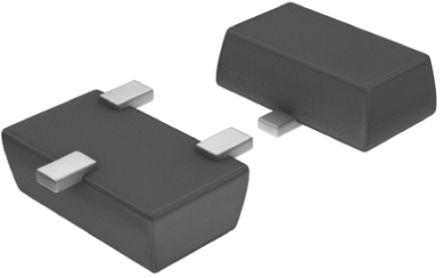

MCH3376-TL-E P-Channel MOSFET, 1.5 A, 20 V, 3-Pin MCPH ON Semiconductor [MCH3376-TL-E]; 145-3867
0₫
Mã kho: 1453867
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 1.5 A |
Maximum Drain Source Voltage | 20 V |
Package Type | MCPH |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 241 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 1.4V |
Maximum Power Dissipation | 800 mW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -10 V, +10 V |
Number of Elements per Chip | 1 |
Length | 2mm |
Transistor Material | Si |
Width | 1.6mm |
Maximum Operating Temperature | +150 °C |
Height | 0.85mm |
Typical Gate Charge @ Vgs | 1.7 nC @ 4.5 V |
